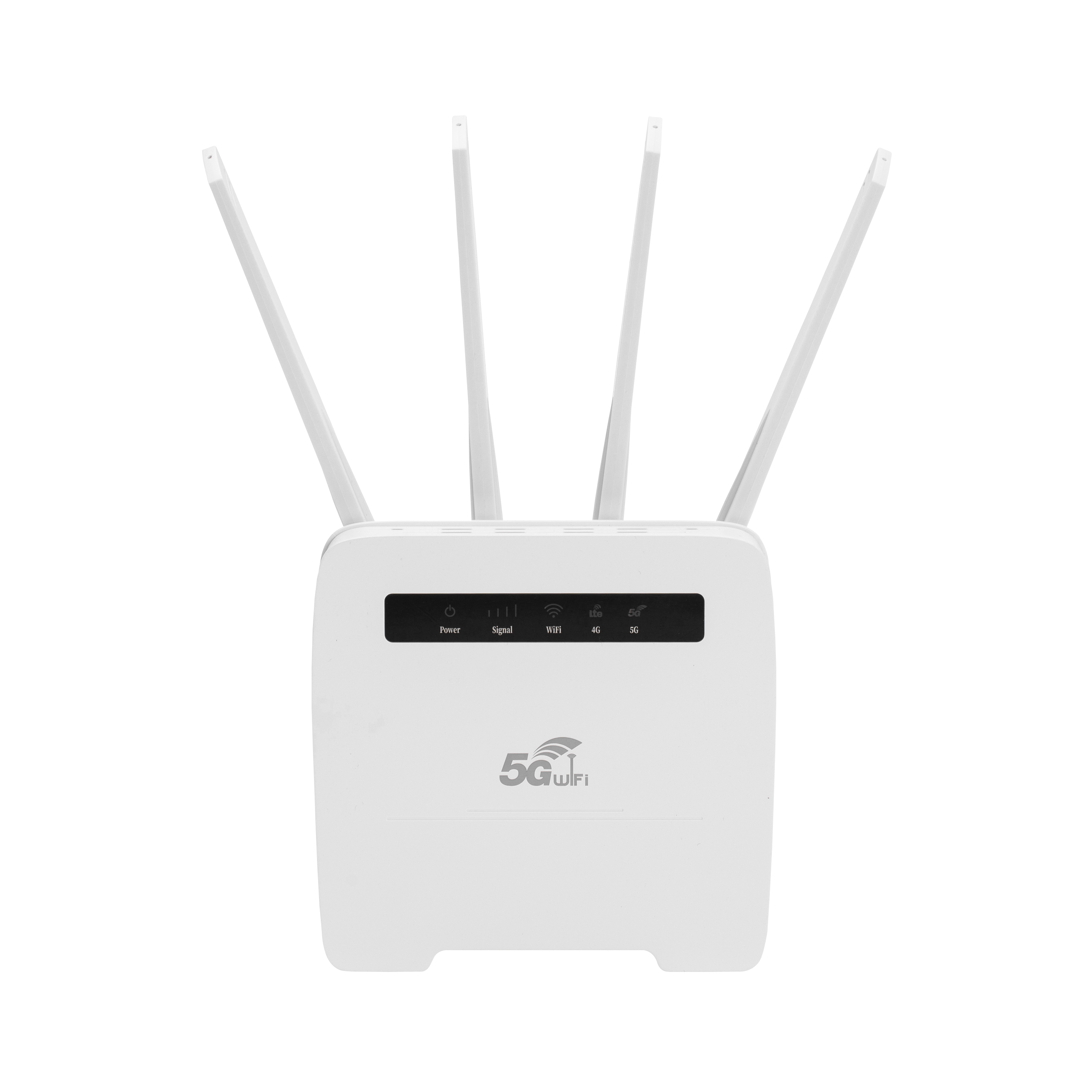

At a glance
- Speed & capacity — Wi‑Fi 6 (802.11ax) and X62 cellular; up to 64 connected devices; field-tested up to 1 Gbps down / 1 Gbps up (operator and site dependent).
- Global cellular — 5G Sub‑6, 4G LTE (TDD/FDD), WCDMA, and GSM; regional band sets for China, Europe, and North America.
- Enterprise-ready — VPDN private network support; traffic and device visibility from PC or mobile.
- Stable RF — Optional base-station locking to reduce unnecessary handovers.
Core specifications
- Processor
- Snapdragon X62
- Memory / storage
- 4 Gbit LPDDR4x · 4 Gbit NAND flash
- Dimensions
- 175 × 168 × 52 mm
- LAN
- 4 × 10/100/1000 Mbps auto-negotiating Ethernet
- SIM
- 1 × standard full-size SIM slot
- Antennas
- 4 × external 5G NR · 2 × internal Wi‑Fi
- Wi‑Fi
- 2.4 GHz & 5 GHz; up to 32 clients per band; 802.11ax up to 1800 Mbps; WPA / WPA2 / WPA‑PSK / WPA2‑PSK
- Environment
- Operating −30 °C ~ 75 °C; storage −30 °C ~ 85 °C; 5%–95% RH non-condensing

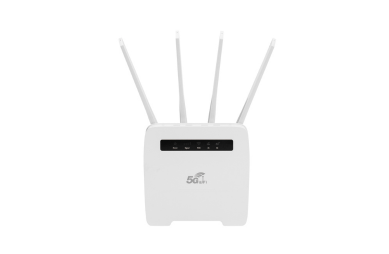

Full band lists and interface details: GZL1800AT datasheet.
